New in AutoCAD 2017: Centerlines & Center Marks

Hello again, this time for the sixth post in our “What’s New in AutoCAD 2017?” series. AutoCAD 2017 software serves up some powerful new tools for creating and editing centerlines and center marks. In previous AutoCAD releases, you could create centerlines and center marks that looked good but weren’t associated with the geometry on which they were centered; if the geometry moved or changed, those centerlines and center marks were unaffected. Centerlines and center marks, however, are meant to stay centered—even when the geometry changes—and in AutoCAD 2017 that’s exactly what they do!

Want to see them in action? Check out this AutoCAD 2017 Centerlines and Center Marks video.

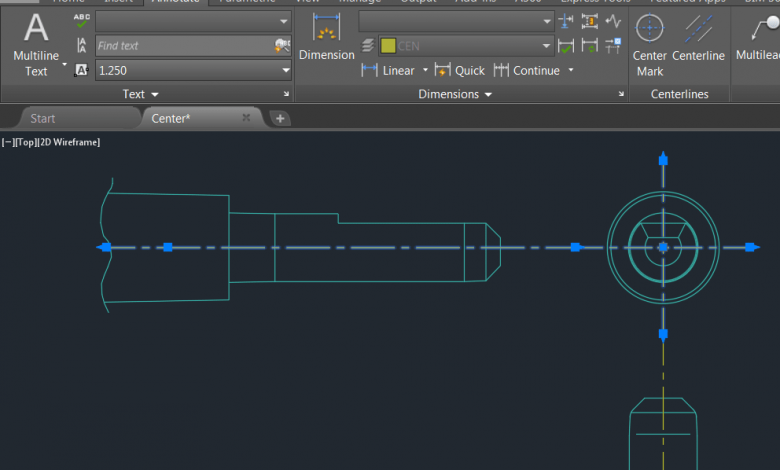

You can access the Center Mark and Centerline tools from the Annotate ribbon tab.

Annotate ribbon tab

Annotate ribbon tab.

The AutoCAD Centerline tool creates centerline geometry of a specified linetype in association with selected lines and polylines. The Center Mark tool creates an associative center mark at the center of a selected circle, arc, or polygonal arc. If you move the  objects, the associated centerlines and center marks update accordingly.

Editing objects with centerlines and center marks.

Editing objects with centerlines and center marks

You can modify centerlines and center marks with their grips. A multifunctional grip menu offers additional controls.

Multifunctional grips on centerlines and center marks.

Multifunctional grips on centerlines and center marks

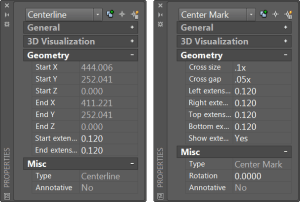

You can use the Properties palette to view and edit centerline and center mark properties.

Centerline and center mark properties.

Centerline and center mark properties

You can disassociate centerlines and center marks from objects using the CENTERDISASSOCIATE command. Use the CENTERREASSOCIATE command to reassociate centerlines and center marks with selected objects.

INTERESTING:   AutoCAD Command Line Enhancements | Tuesday Tip Lynn

Contents

AutoCAD 2017: Centerline and center mark system variables

Additional “CENTER” system variables enable you to further control the behavior and appearance of centerlines and center marks.

CENTEREXE: Controls the length of extension line overshoots for centerlines and center marks.

CENTEREXE set to .12 (left) and 1.0 (right).

CENTEREXE set to .12 (left) and 1.0 (right).

CENTERMARKEXE: Determines whether extension lines are created for center marks.

CENTERMARKEXE turned on (left) and off (right).

CENTERMARKEXE turned on (left) and off (right)

CENTERLTYPE: Specifies the linetype used by centerlines and center marks.

CENTERLTYPE set to Center2 and Continuous

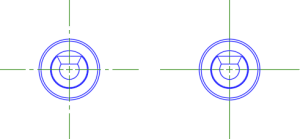

CENTERLTYPE set to Center2 (left) and Continuous (right)

CENTERLAYER: Specifies the layer on which centerlines and center marks are created.

CENTERLTSCALE: Sets the linetype scale used by centerlines and center marks.

CENTERLTSCALE set to 1 and .5

CENTERLTSCALE set to 1 (left) and .5 (right)

CENTERCROSSSIZE: Determines the size of the central cross for center marks.

CENTERCROSSSIZE set to .1 and .2

CENTERCROSSSIZE set to .1 (left) and .2 (right)

CENTERCROSSGAP: Determines the extension line gap between the central cross and the extension lines of center marks.

CENTERCROSSGAP set to .05 and .1

CENTERCROSSGAP set to .05 (left) and .1 (right)

Use the CENTERRESET command to reset the extension lines of a center mark or centerline object to the current value of CENTEREXE.
